ISO Large Vision Measurement Machine High Loading Capability

Name: ISO Large Vision Measurement Machine High Loading Capability
Brand: Unimetro
Price: 32500 USD

Brand Name : Unimetro

Model Number : HE652

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Price : usd32500-usd37500/set

Payment Terms : T/T

Supply Ability : 30 sets per month

Delivery Time : 15days

Packaging Details : wooden case

dimension : 1700*1180*1750mm

net weight : 1500kg

X/Y travel : 500x600

accuracy : ≤3+L/200um

Repeatability : 3um

Contact Now

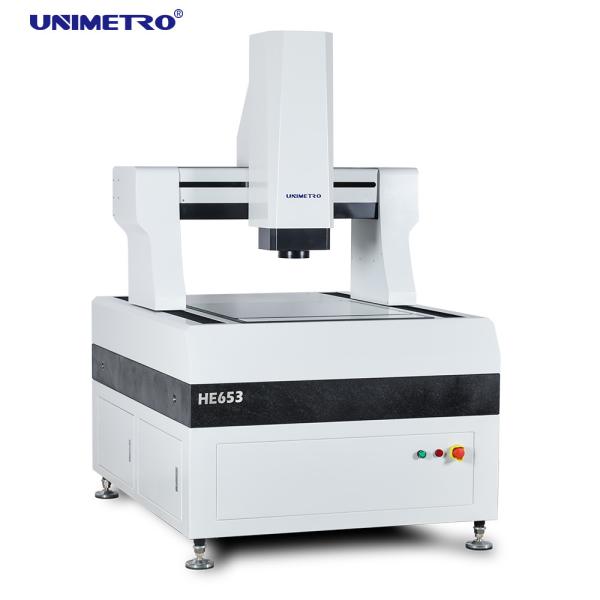

High accuracy Full automatic touch probe large vision measurement machine vmm

Product Description

Finite elements analysis is introduced in the designing process of the HE series,ensure high rigidity and accurate mechanical structure.
The machine base is using closed frame movable bridge type structure,which is simple and offers high loading capability and the best motion performance.

Large vision measurement machine Features:
>> Movable gantry structure and the workpiece is fixed when measuring;
>> Four axis CNC full-automatic closed-loop control, full-automatic measurement;
>> 000 grade granite base and beam, stable and reliable;
>> Open grating ruler with resolution of 0.1 um, high precision and good stability;
>> Precision linear guide rail, grinding grade ball screw and Panasonic AC servo motor ensure the stability of positioning accuracy of machine motion system;
>> High resolution color camera to meet the requirements of clear observation and stable measurement;
>> 6.5x continuous automatic zoom lens, accurate automatic zoom, one pixel correction is enough;
>> The programmable 5-ring 8-zone LED surface light source and transmission parallel LED contour light source system can realize 256 level brightness adjustment intelligently;
>> The imported contact probe is configured to realize 3D measurement;
>> Immeasuring4.2 automatic image measurement software with independent property rights is provided as standard, which is powerful and easy to use;

ISO Large Vision Measurement Machine High Loading Capability

Probe Features

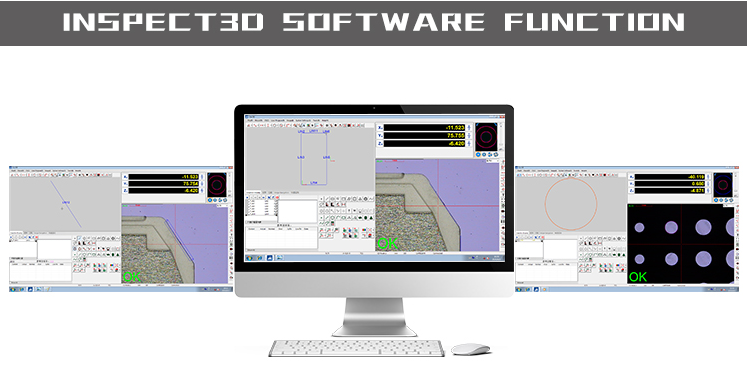

Our large vision measurement machine has powerful software to support.
► With the External-Array RationalVue composite measuring software,the ULTRA series is capable to offer powerful 2D/3d composite measuring function;
►Simple and easy to understand operation interface makes measurement more simple and efficient;
►Automatic measurement program can be set to complete batch measurement efficiently and quickly.

Parameters

Our large vision measurement machine details are as below chart shows:

Model	HE652	HE862	HE1080	HE1210	HE1512	HE1812
X,Y Travel(mm)	500*600	600*800	800*1000	1000*1200	1200*1500	1200*1800
Z-axis Travel(mm)	200(can be raised according to the requirements of customers)
Load Capacity	approx. 35 kg
Dimension (mm)	170011801750	170012801750	190014801750	210016801750	250018801750	270018801750
Weight(kg)	1500	1800	2900	3200	4400	4800
Resolution	0.5μm(0.1μm for option)
Camera	2M HD GIGA digital camera
Zoom Lens	professional auto zoom lens Zoom lens magnification: 1~10X
Video Magnification	18~195X
	(According to the different models of the selected camera, its magnification will change; the actual magnification is subject to the measured data)
FOV	8.1~1.3mm
	(According to the different matching schemes of camera and lens, the field of view will change accordingly, and the actual field of view is subject to the measured data)
Accuracy*	≤ (3+L/200)μm
Illumination	Programmable 5-ring 8 sections LED surface illumination
	(40 sections ring light,Co-axial light,movable multi color ring light for option)
